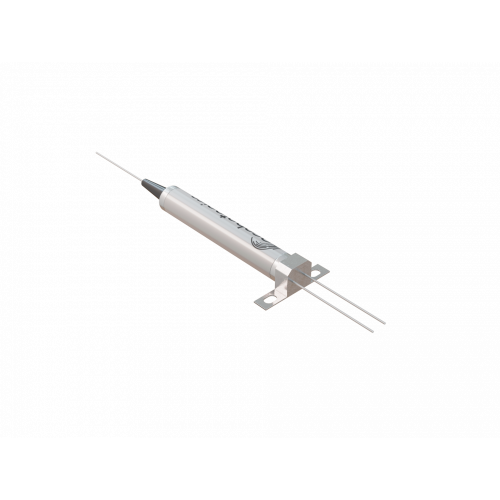

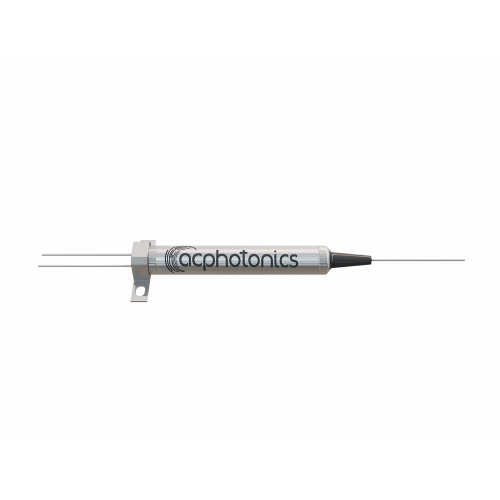

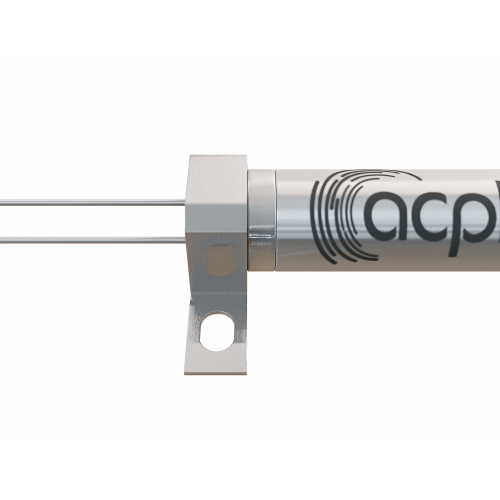

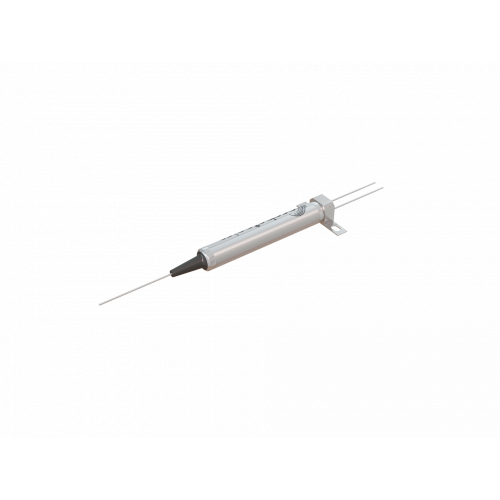

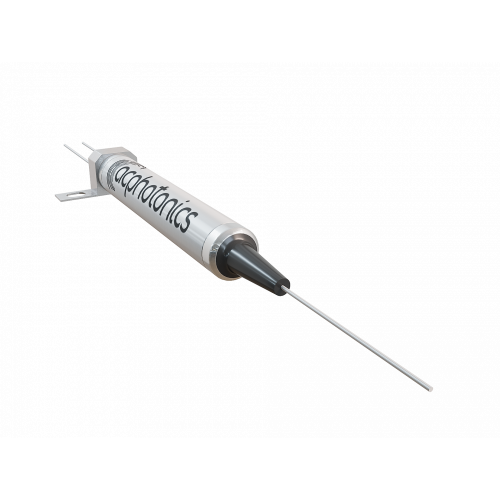

PM Uni- and Bi-directional Integrated Tap Detector
ACP’s PM Uni- and Bi-directional integrated Tap Detector is a hybrid optical component that combines the functionality of a thin film tap and a PIN optical detector in a compact packagefor power monitoring applications. The unidirectional design ensures only input port power is detected with a high isolation(directivity) for the reflected light.
All AC Photonics' products are Telcordia qualification tested.
Features
- Low IL and High Extinction Ratio
- Low Dark Current
- Excellent Directivity
- Hermetically Sealed PD
Applications
- EDFA Power Control
- DWDM System Monitor
- Network Switch
Specifications
| Parameter | Unit | Specifications | ||
|---|---|---|---|---|
| Tap Ratio | % | 1 | 2 | 5 |
| Operating wavelength | nm |
1310nm: 1270 ~ 1350 1550nm: 1510 ~ 1610 O+C+L Band: 1270 ~ 1350 & 1510 ~ 1610 |
||
| Insertion Loss (Single Window) | dB | ≤ 0.7 | ≤ 0.7 | ≤ 0.9 |
| Insertion Loss (Dual Window) | dB | ≤ 0.9 | ≤ 0.9 | ≤ 1.1 |
| Responsivity (Max) | mA/W | 181) | 291) | 681) |
| Responsivity (Min) | mA/W | 21) | 71) | 361) |
| Wavelength Flatness | dB | ≤ 0.15 | ||
| Polarization Dependent Loss | dB | ≤ 0.10 | ||
| Extinction Ratio (Singe Window) | dB | ≤ 20 | ||
| Extinction Ratio (O+C+L band) | dB | ≤ 18 | ||
| Directivity | dB | ≥ 202) | ||
| Return Loss | dB | ≥ 40 | ||
| Fiber Type |
1310nm band: PM1310 PANDA Fiber 1550nm & O+C+L band: PM1550 PANDA Fiber |
|||
| Optical Input Power (Max.) | dBm | ≤ 23 | ≤ 20 | ≤ 16 |
| Soloering Temperature | °C | 250 (≤10sec) | ||
| Operating Temperature | °C | - 5 to +70 | ||
| Storage Temperature | °C | - 40 to +85 | ||
| Package Dimensions | mm | See “MECHANICAL DIMENSIONS” | ||
Note:
1) The responsivity is best effort values.
2) Directivity is only for Uni-directional one.
All values refenced are without connector.
